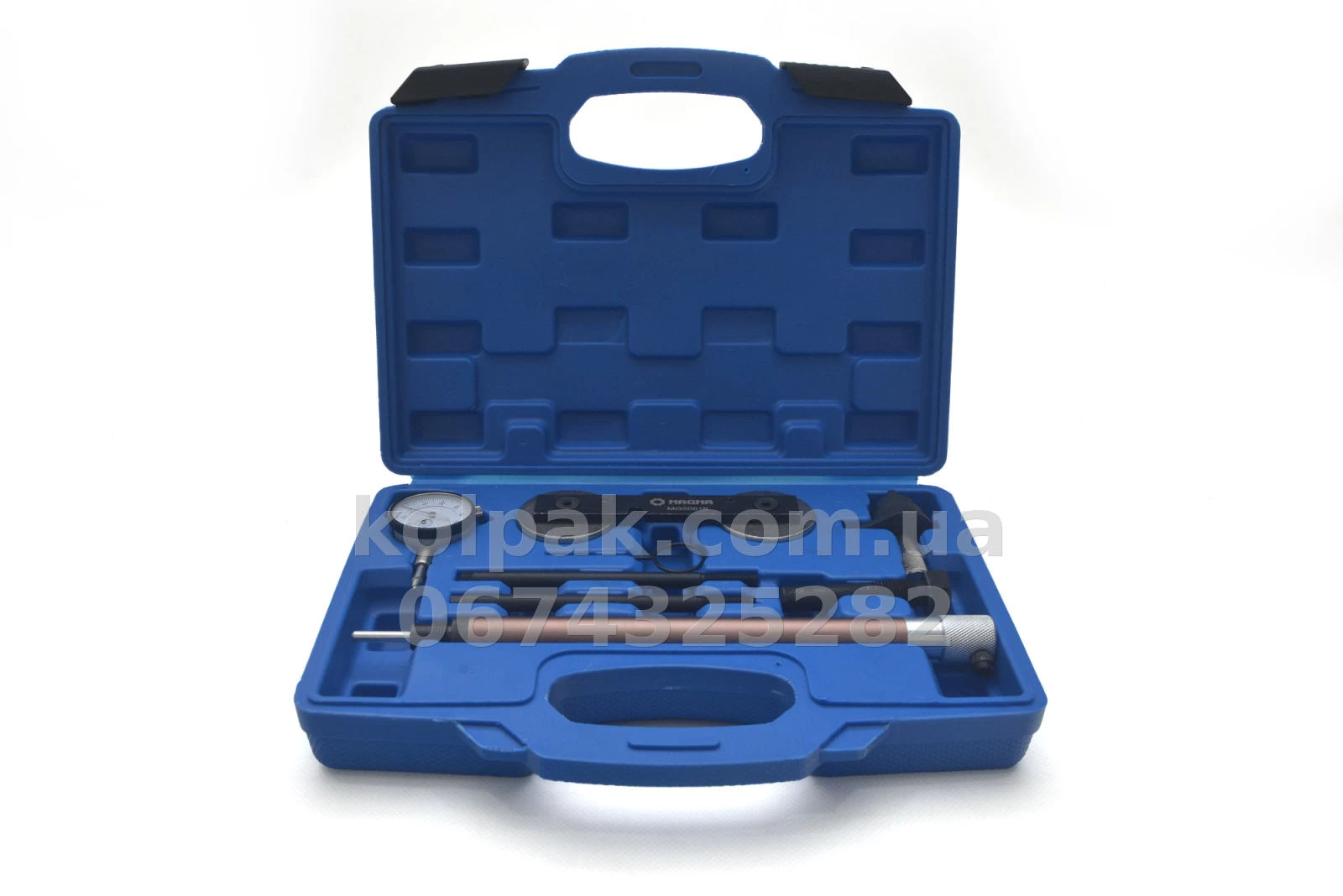

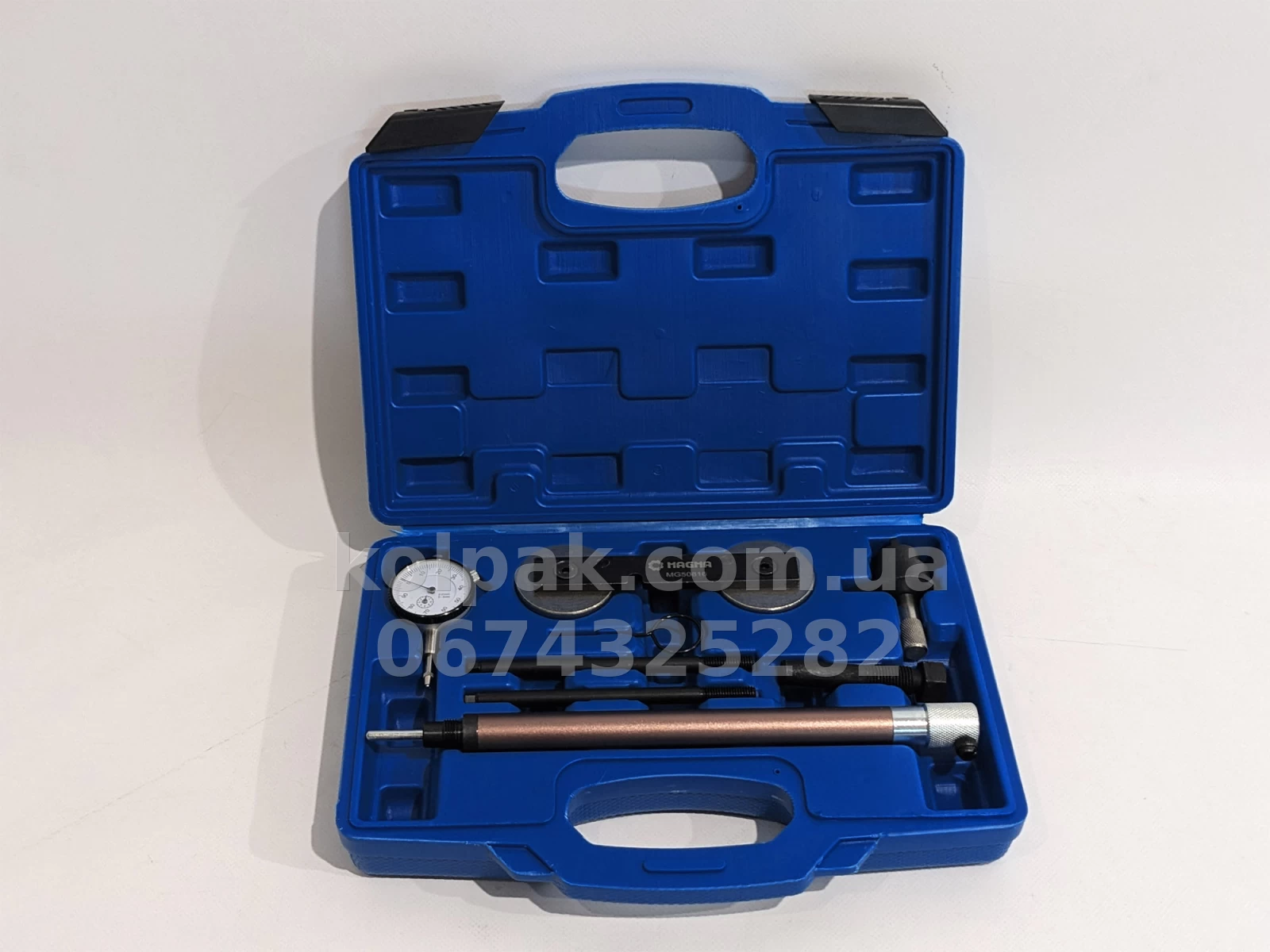

Timing shaft locking tool set VW/SKODA 1.2/1.4 TSI/1.6 FSI MG50816/MAGMA
Used for belt or drive chain replacement in VAG group petrol engines.

Engine codes:

• 1.2 FSI/TFSI: CBZA, CBZB, CBZC.
• 1.4 TSI/1.4.
• 1.6 FSI: AXU, BAG, BKG, BLF, BLG, BLN, BLP, BMY, BTS, BWK CAXA (03-).

Application:

• AUDI: A1, A3, A3 CABRIO.
• SEAT: Alhambra, Altea/Altea XL, Ibiza, Leon.
• SKODA: Fabia II, Octavia II, Praktik, Roomster, Suberb II, Yeti.
• VW: Beetle, Caddy/Caddy Maxi, Eos, Golf Plus, Golf V, Golf V Estate, Golf VI, Golf VI Cabrio, Golf VI Estate, Jetta, Passat, Polo, Scirocco, Sharan, Tiguan, Touran.

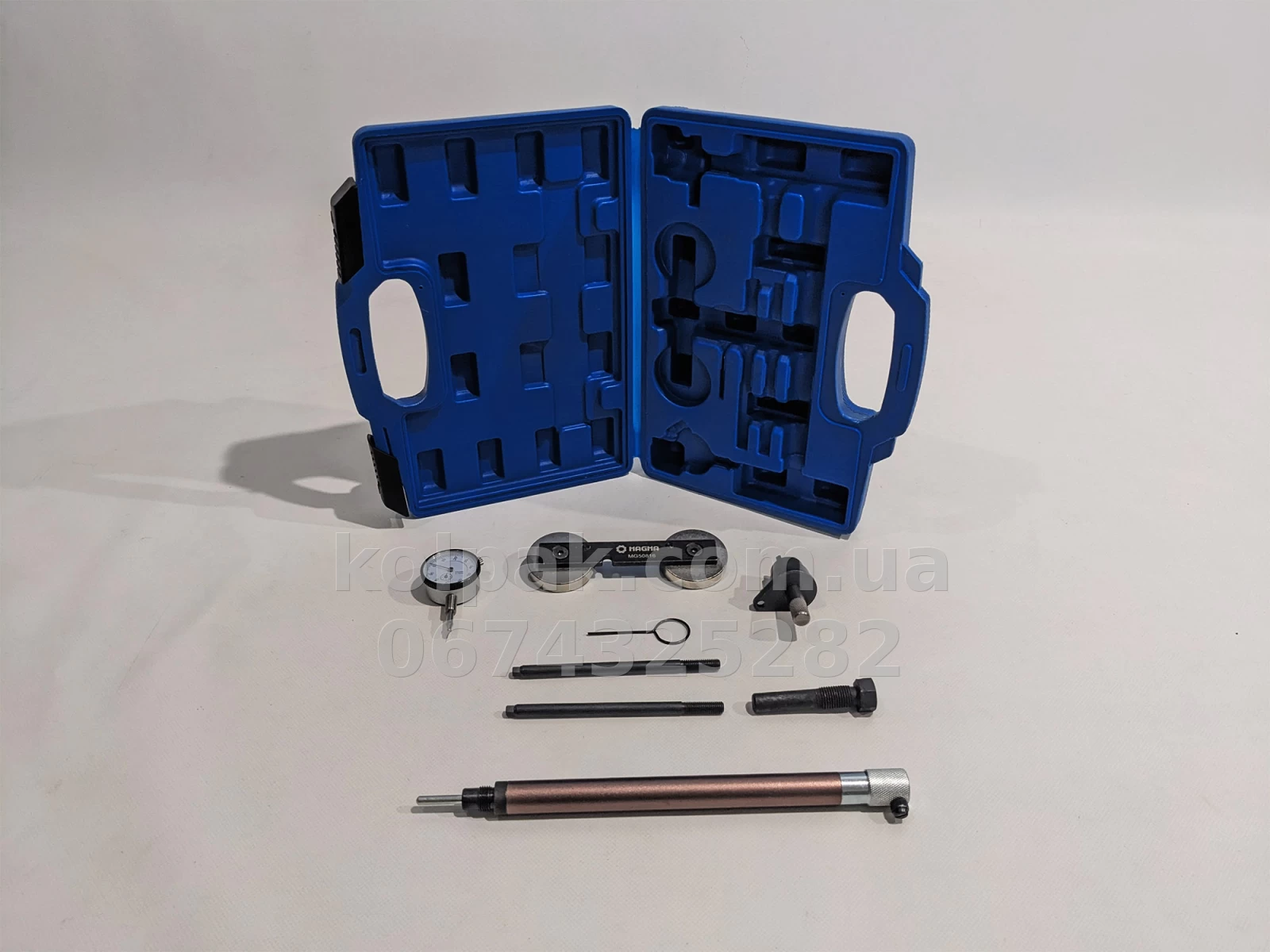

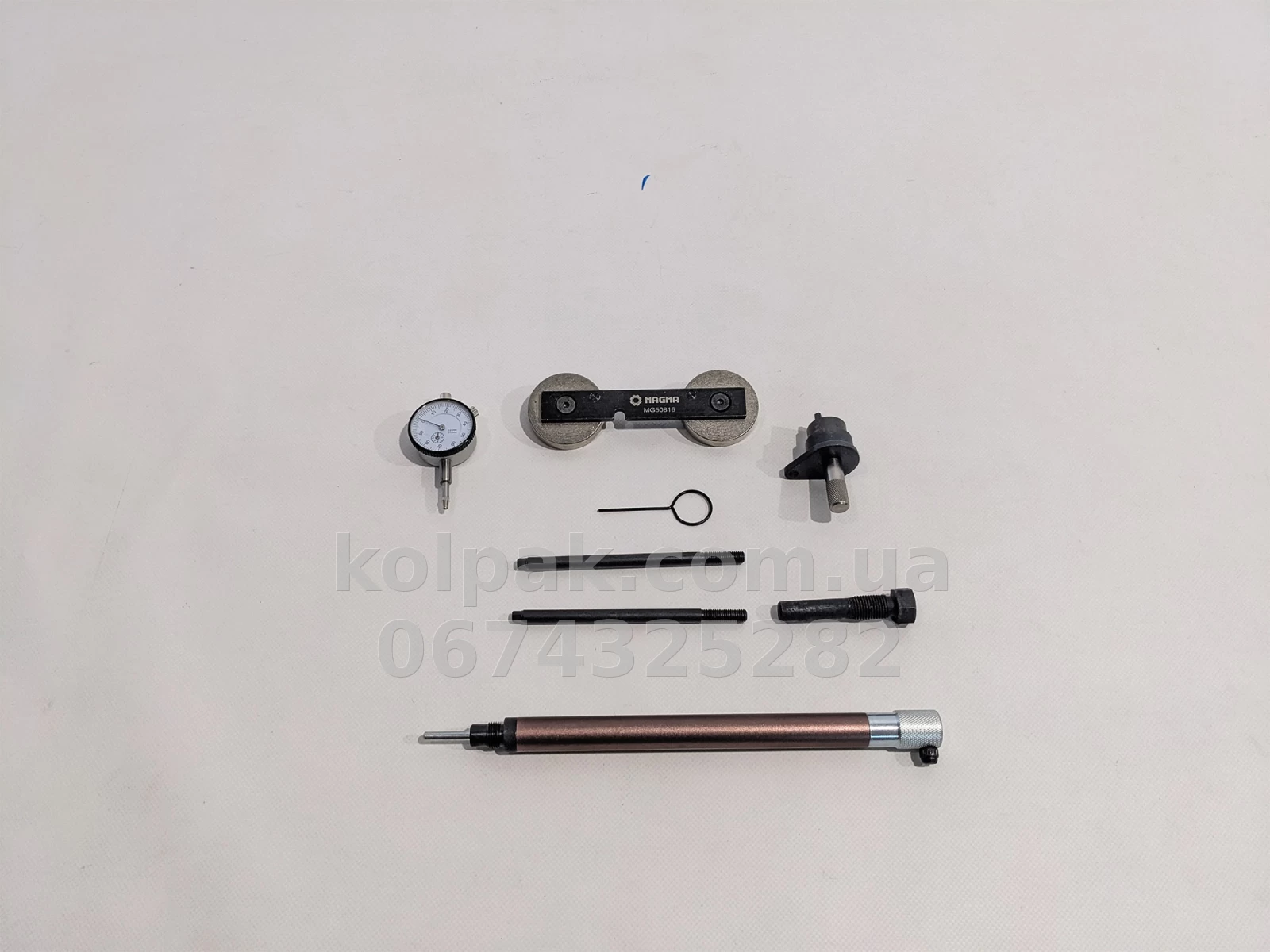

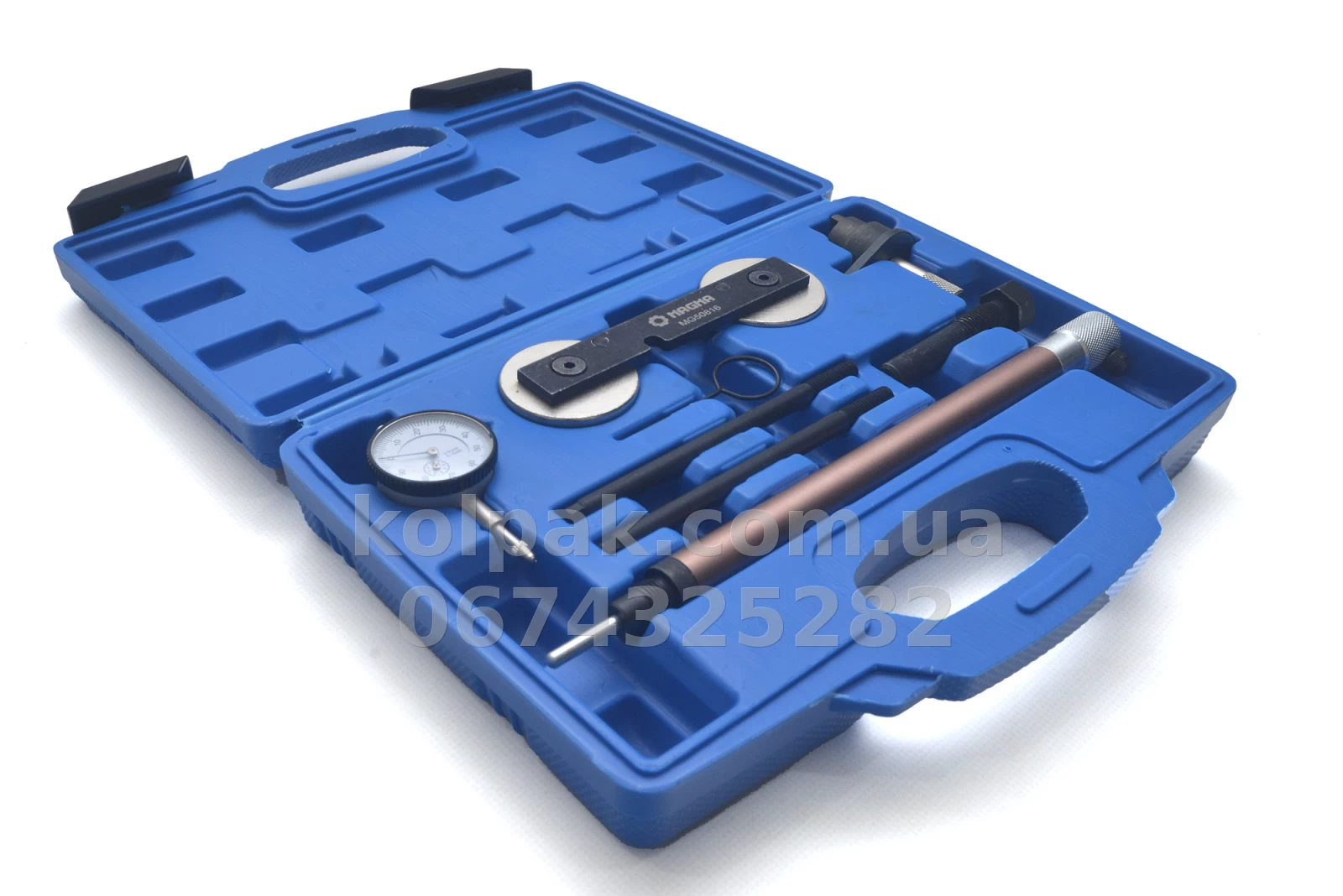

Specification:

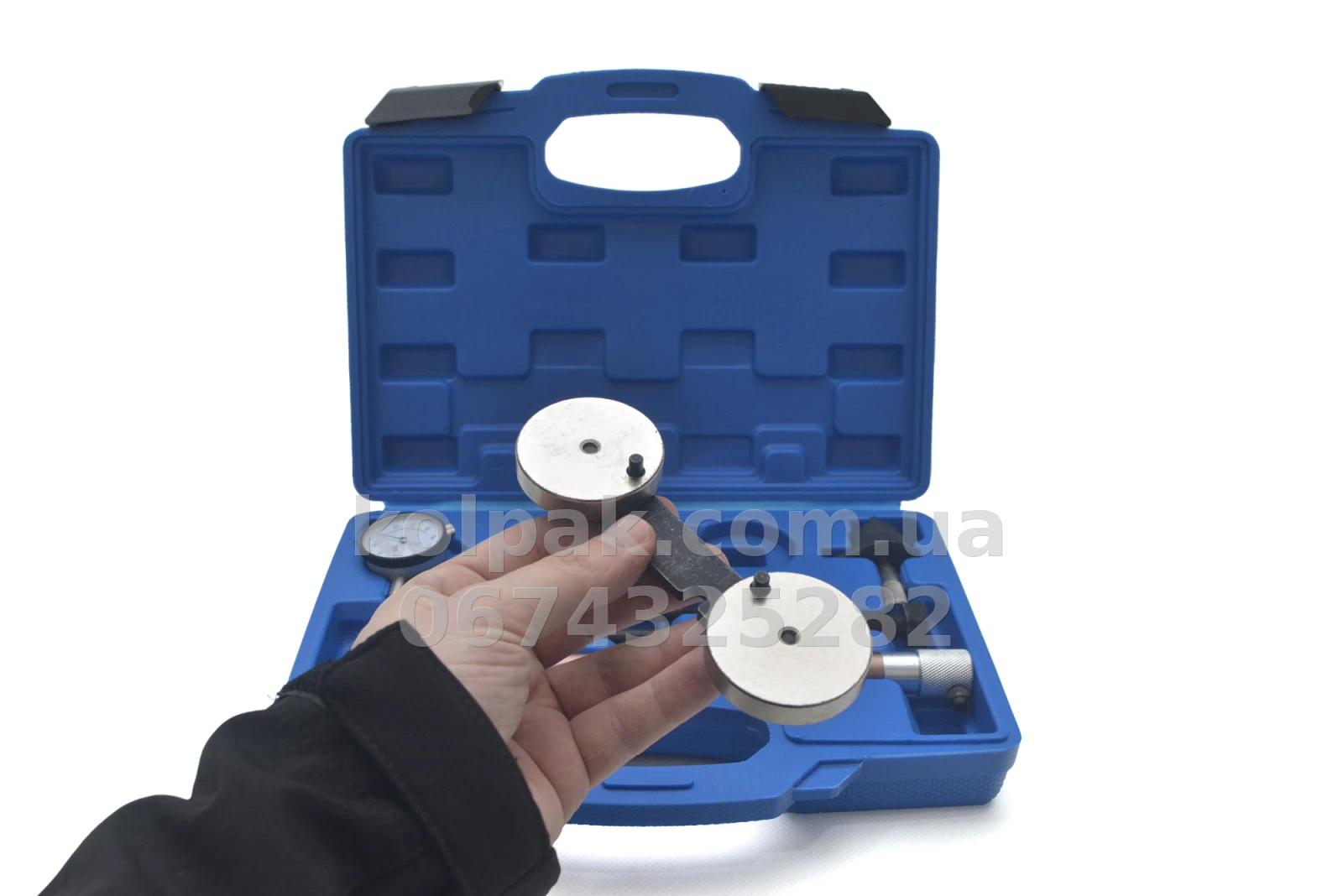

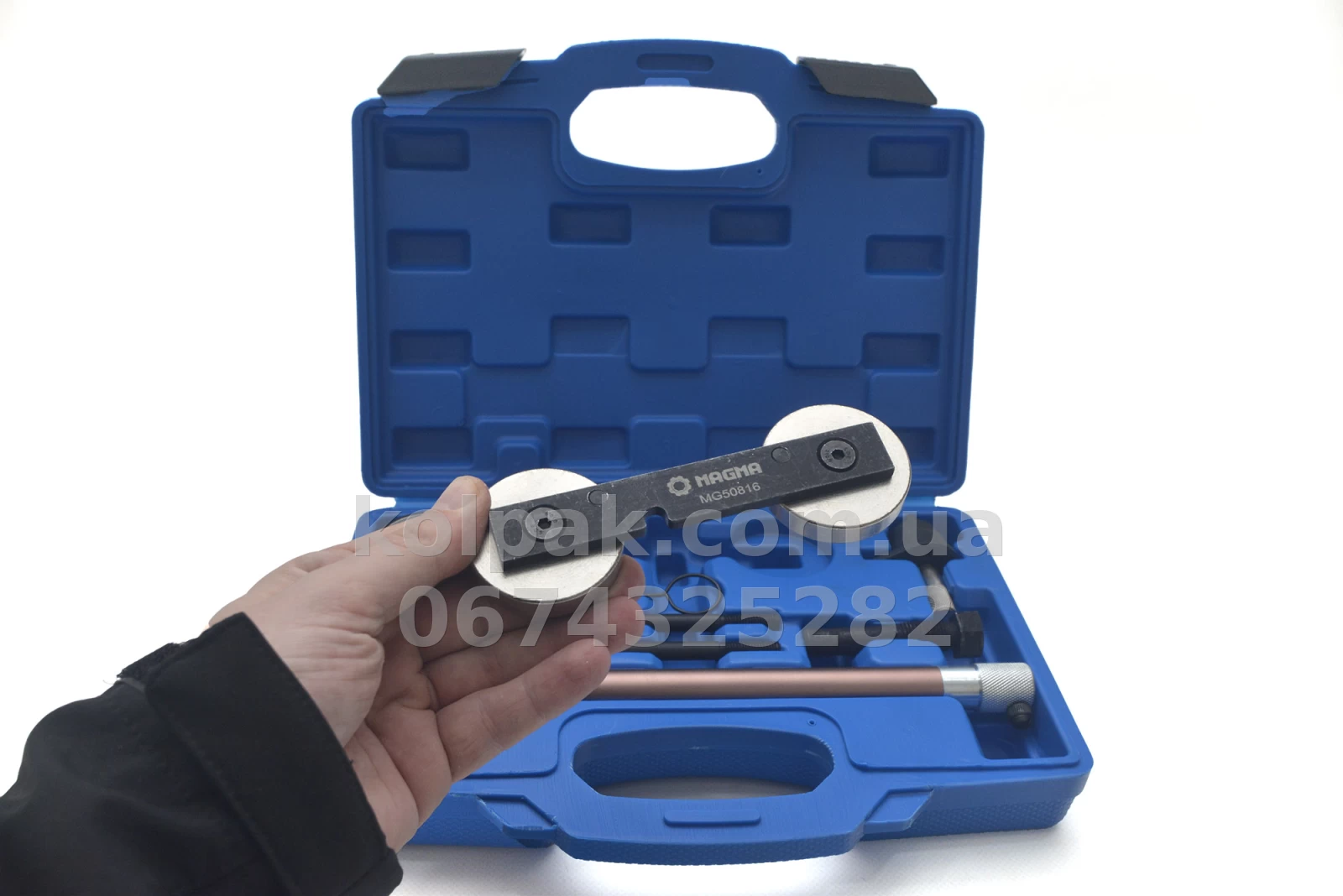

• Camshaft lock OEM T10414.
• Crankshaft locking pin OEM T10341.
• Camshaft locking tool OEM T10171.
• Pin OEM T40011.
• Dial gauge, accuracy 0,01 mm, measuring range from 0 to 7 mm.
• Round scale with analogue display, diameter 41 mm.
• Clamping shaft 8 mm.
• Dial gauge holder with an overall length of 274 mm and an external M14x1.25 mm thread for setting top dead centre.
• Two guide bolts, length 135 mm, external thread 24 mm, length M8x1,25 mm.
• External hex key, size 6 mm.
